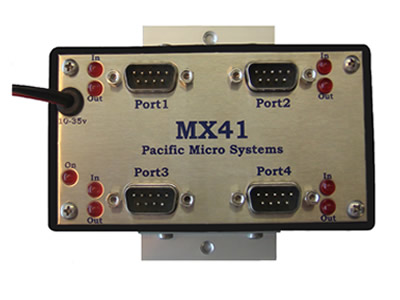

MX41 - Multiplexer

Description

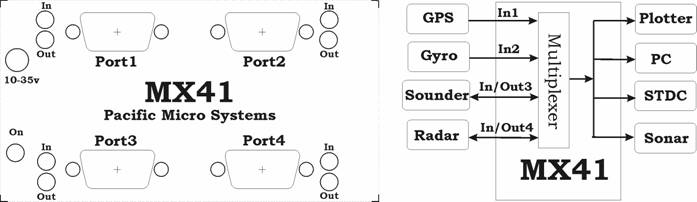

The MX41 is a 4 input, 4 output multiplexer designed to assist with the total integration of electronic equipment in the wheelhouse. It multiplexes or combines 4x NMEA0183 data sources together into all 4 outputs. Each I/O connector has 2 separate outputs enabling a total of 8 outputs of the combined data. Each input is via an opto-coupler to provide equipment isolation. The MX41 is a product in the range produced by Pacific Micro Systems specifically designed to accomplish low cost data integration. The MX41 has an isolated ground that provides full dc isolation between the input supply and ground/outputs.

Input requirements
Current loop, RS422 or RS232

Output capabilities

Current loop and RS232 or RS422

Power Requirements

11-35 vdc @ 50-100mA.
Isolated ground provides full dc isolation between the input supply and ground/outputs.

Physical Parameters
Enclosure Plastic with RFI shielded - polished stainless top
LED Indicators Power ON, Data In and Data Out each port
Mounting Bulkhead or desktop
Weight 300 grams
Dimensions 85 x 112 x 37 mm
Connectors 4x DB9 (In/Out)
1x 2 pin power cord in-line
