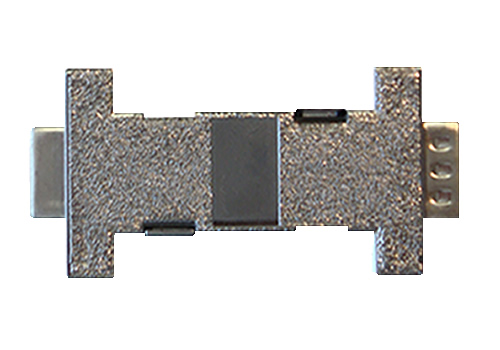

MX2 - Multiplexer
|
|
Description
The MX2 is a 2 input, 2 output multiplexer designed to assist with the total integration of electronic
equipment in the wheelhouse. It multiplexes or combines 2x NMEA0183 data sources together into both outputs.
Each I/O connector has 2 separate outputs enabling a total of 4 outputs of the combined data.Each input is
via an opto-coupler to provide equipment isolation. The MX2 is a product in the range produced by Pacific
Micro Systems specifically designed to accomplish low cost data integration. The MX2 has an isolated ground
that provides full dc isolation between the input supply and ground/outputs.
|
Input requirements
|
|
Current loop, RS422, RS232
|
Output capabilities
Current loop
|
Power Requirements
11-35 vdc @ 50-100mA.
Isolated ground provides full dc isolation between the input supply
and ground/outputs
|
Data Output
4800 Baud
|
Physical Parameters
|
|
Enclosure
|
Plastic with RFI screen
|
|
Weight
|
22 grams
|
|
Dimensions
|
34 x 65 x 18 mm
|
|
Connectors
|
2x DB9 - Female data in, Male data out
|
|
