DD20 Data Distributor
Data Distributor

DD20

1 in · 24 out (8 current loop, 8 RS422, 8 RS232)

The DD20 has been designed to assist with the total integration of electronic equipment aboard a vessel. It accepts data from one source — current loop, RS422 or RS232 — and distributes it across 8 current-loop outputs, 8 RS422 outputs, and 8 industry-standard RS232 outputs. Each output is capable of driving multiple downstream inputs. The unit is isolated from ground, providing full DC isolation between the input supply and ground/all outputs.

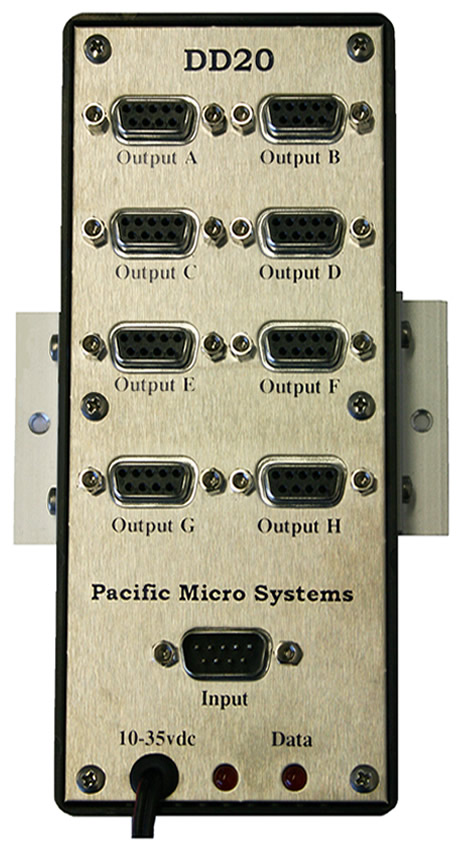

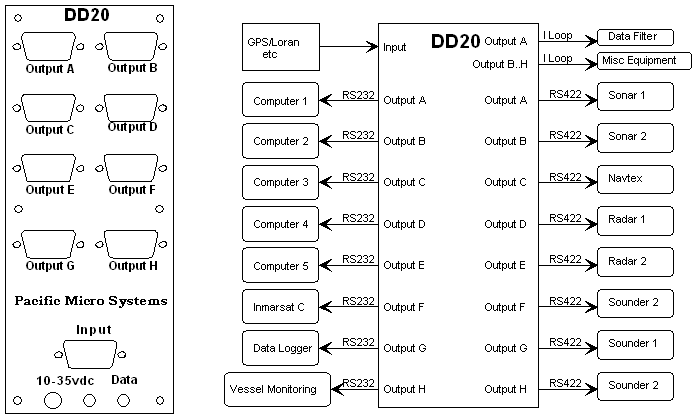

DD20 front panel configuration

Specifications

Input requirements

Current loop, RS422 or RS232
Normal or inverted — internally selectable

Output capabilities

Current loop (8 outputs)
RS422 (8 outputs)
RS232 (8 outputs)

Power requirements

10–35 VDC @ 50–280 mA
(depending on number of outputs loaded)
Full DC isolation between supply & outputs

Physical parameters

EnclosurePlastic with RFI shield, polished stainless top
LED indicatorsPower ON and Data In
MountingBulkhead or desktop
Weight360 grams
Dimensions92 × 155 × 37 mm
Connectors1 × DB9 Male (Data In) · 8 × DB9 Female (Data Out) · 1 × 2-pin power cord in-line

Download manual (PDF) Download flyer (PDF)
